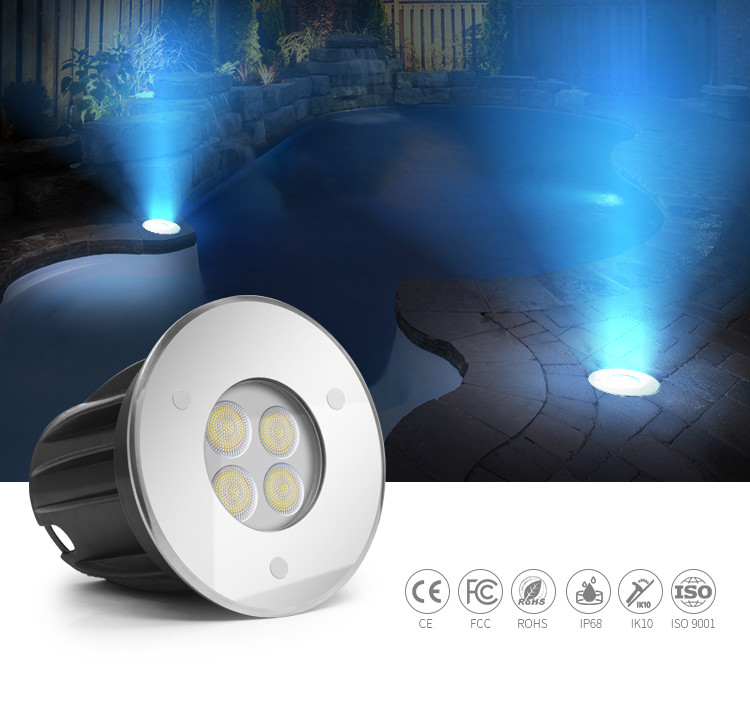

CREE / EDISON Source Led Swimming Pool Lights Inground IP68 Waterproof 6 Watt

Shenzhen Heguang Lighting Co., Ltd.
Contact Now

CREE / EDISON Source Led Swimming Pool Lights Inground IP68 Waterproof 6 Watt

  • 1
  • 2
  • 3

Brand Name : Birmate

Model Number : HG-UL-5W-SMD-G

Certification : CE, RoHs, FCC, IP68,IK10

Place of Origin : China

MOQ : 1 pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union, PayPal

Supply Ability : 50000 pcs per month

Delivery Time : 5-7 working days

Packaging Details : Standard Export Carton Box

Wattage : 5W±1W CREE

Warranty : 2 years

Product size : Φ98×88mm

Voltage : DC24V

Lamp body material : 316L Stainless steel +Tempered glass cover cover

lumen : 450LM±10%

Contact Now

CREE / EDISON Source Led Swimming Pool Lights Inground IP68 Waterproof 6 Watt​

Product details

1. Working voltage: DC24V input.

2. IP Rank: IP68 waterproof.

3. SS316L material, strong anti-corrosion ability.

4. VDE standard outlet: standard cable length is 1 meter.

5. LED Color: Pure White: 6500±10% Warm White:3000K±10% costomized.

6. Grounding fixing method default: aluminum grounding pole (plastic grounding pole optional)

CREE / EDISON Source Led Swimming Pool Lights Inground IP68 Waterproof 6 Watt

Specification

HG-UL-5W(SMD)(24V)-G
Lamp paramater Material SS316L body+tempered glass cover+VDE rubber cable
length Φ98×88mm
Input voltage DC24V
Constant Driver yes
Over-current Protection yes
Wattage 5W±1W CREE
Light lumen 450LM±10%
Beam angle 15°/30°/45°/60°
CCT Pure White: 6500±10% Warm White:3000K±10% costomized
Specifics Operating Temperature (℃) -20~40℃
IP Rating IP68
Certificate CE, RoHS,FCC,IP68,IK10
Life-span 50,000 hours
Warranty 2Years
Test position LED Grond light (Min)
Working temperature 28℃ Working temperature 40℃
land test(Min) 480 480
LED edge temperature(℃) 60 75

Product Features

1. Constant current power supply driver.

2. inground light stainless is waterproof wire design ,prevent the water into the wire.

3. Integrated bead lens with uniform lighting, no dazzling, light transmittance >85%

4. Thickened aluminum board: 2-3mm,super good heat dissipation, heat conductivity: 2.0W/(m.k)

5. IK10 8mm transparent tempered glass, light transmittance >90%, no effect with the LED color temperature.

6. CREE LED chips,RA ≥80, gold wire welding,EMC and ceramic make the heat dissipation faster,
assure the longer lifespan of LED.

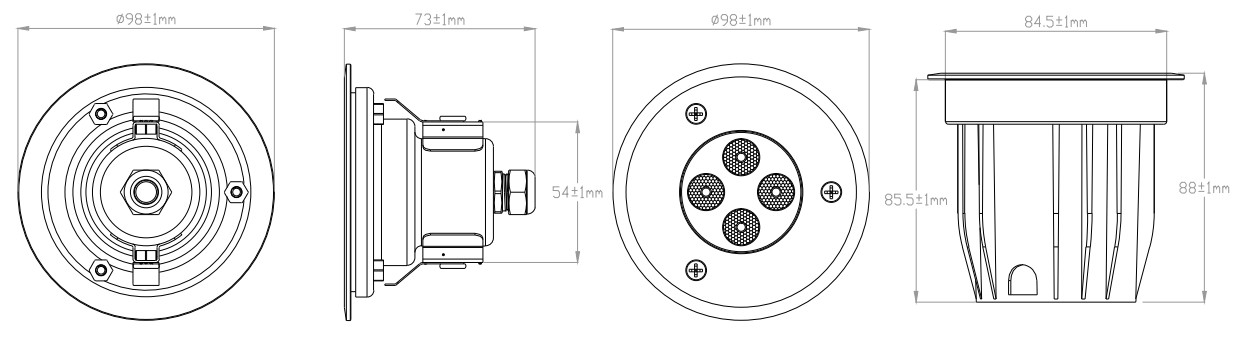

Product Size

CREE / EDISON Source Led Swimming Pool Lights Inground IP68 Waterproof 6 Watt

CREE / EDISON Source Led Swimming Pool Lights Inground IP68 Waterproof 6 Watt

Advantage

1. Reliable quality with 100% 10m depth waterproof test.

2. Good looking stamping SS316 rivet screws, more stable, never fall off.

3. Above ground led lights Finished products all passed 30 steps quality inspection.

4. Underwater pool lights for above ground pool must be 8 hours aging test and provide 2 Years warranty.

5. Thickened aluminum board: 2-3mm, better heat dissipation with the conductivity: 2.0W/(m.k),

LED Ground light all passed 30 steps quality control , 100% waterproof at 10m depth,

8 hours LED agening test,100% inspection before deliver.

Application

IP68 Led Ground light Widely used as garden, community, lawn, park and other landscape lighting

CREE / EDISON Source Led Swimming Pool Lights Inground IP68 Waterproof 6 Watt

Packing List

Item

HG-UL-5W-SMD-G

Product weight 510G/PCS
color box size 625×380×325mm
Carton/pcs 50pcs/Carton
Carton size 610x410x410mm
Carton weight 28KG/CTN

FAQ

1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,

please call us directly or leave us the messge ,we will give priority to your inquiry.

2. Q: May I get samples to test quality and how long can I get them?

A: Yes, samples can be ready in 3-5 days.

3. Q: What is the MOQ?

A: NO MOQ,the more you order ,the cheaper price you will get .

4. Q: Can you accept small trial order?

A: Yes

5. Q: Do you accept the OEM&ODM?

A: Yes, OEM/ODM acceptable.

6.Q:what's the RGB control you have?

A: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,DMX512 control,etc.
