9W Mini Garden Landscape Ourdoor Lighting Recessed 10W 24V RGB External Control
Product details
1. IP Rank: IP68 waterproof.
2. inground led light Cree Led Chip.
3. Private Mode products,Support ODM&OEM.
4. Ground light led is 316L Stainless steel material, super good anti-corrosion.
5. RGB external control and DMX512 control are the best selling control in Heguang.
6. Led in ground light use 8.0mmTempered glass transparent cover, thickness.

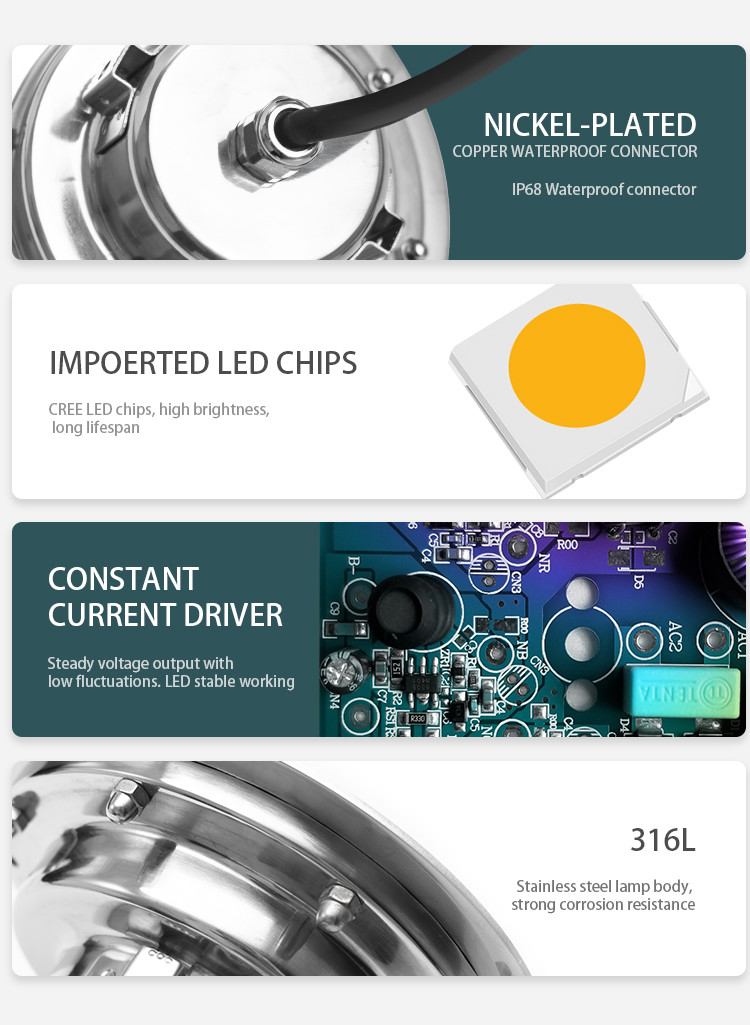

Product Features
1. Constant current power supply driver.
2. Constant current power driver, EMC anti-interference circuit. efficiency ＞90%.
3. Customized IP68 waterproof nickel plated brass design, good anti-corrosion.
4. IK10 8mm transparent tempered glass, light transmittance ＞90%, no effect with the LED color temperature.
5. LED solar powered in-ground lights is waterproof wire design, prevent the water into the wire.
6. LED underground lights outdoor ground lights is IP68 structure waterproof, can long time use under water.
Specification
| HG-UL-9W-SMD-G |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×87.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9±1W CREE |
| Light lumen | 850LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| Test position | LED Grond light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| land test(Min) | 480 | 480 |
| LED edge temperature(℃) | 68 | 75 |
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Good looking stamping SS316 rivet screws, more stable ,never fall off.
3. inground led mini light must be 8 hours aging test and provide 2 Years warranty.
4. LED in-ground driveway lights Finished products all passed 30 steps quality inspection.
Thickened aluminum board: 2-3mm, better heat dissipation with the conductivity: 2.0W/(m.k).
LED Ground light all passed 30 steps quality control , 100% waterproof at 10m depth ,
8 hours LED agening test,100% inspection before deliver.
Application
Led inground light Widely used as garden, community, lawn, park and other landscape lighting.
Packing List
| Item | HG-UL-9W-SMD-G |
| Product weight | 890G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us directly or leave us the messge ,we will give priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable.
6.Q:what's the RGB control you have?
A: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,DMX512 control,etc.
